Acer Veriton M6690g vs. Dell G5 5090

Comparison and Differences

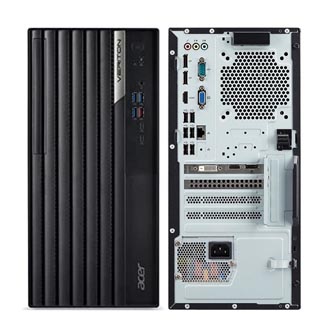

Acer_Veriton_M6690g.jpg case front and back pannelDell_G5_5090.jpg case front and back pannel
Model
Form factorMini TowerMini Tower
CPU optionsIntel Gen12 i3/i5/i7/i9Intel Gen9 i3/i5/i7/i9;
ChipsetQ670H370
Dedicated GPU *RTX 3070GeForce RTX 2080
RAMUDIMM DDR4-3200DIMM DDR4-2666
RAM slots44
RAM speed3200 MT/s2666 MT/s
RAM max128 GB64 GB
USB ports(3x) USB-A 3.0; (6x) USB-A 2.0; USB-A 3.1; USB-C 3.1; USB-C 3.2(5x) USB 3.0 Type A; (4x) USB-A 2.0; USB 3.0 Type C;
Video ports(2x) DisplayPort 1.4a; HDMI 2.0b; VGAN/A
Other portsRJ45; (2x) Mic, Speaker; Line in; Line out; PS/2 portsRJ45; Headset; Mic; Line-Out; Front, side, center, rare outputs;
Optional portsCard reader; Parallel; SerialN.A.
SATA ports53
PCI slotsPCIe 4.0 x16; PCIe 3.0 x1; PCI; PCIe 3.0 x16 (wired x4)PCIe 3.0 x16; PCIe 3.0 x4; PCIe 3.0 x1;
M.2 slots(2x) M.2 2280/2230 M-key (PCIe 4.0 x4, NVMe); M.2 2230 (WiFi/BT)M.2 2230 (WiFi/BT); M.2 2230/2280 M-key (PCIe 3.0 x4, NVMe);
Drive bays(2x) 2.5/3.5in; 5.25 inch(2x) 2.5in; 3.25in;
PSU300/500 W360/460 W
Weight10.40 kg (22.90 lb)8.20 kg (18.07 lbs)
Released20222019
Manuallinklink
Price**Check PriceCheck Price

** As an Amazon associate we earn from qualifying purchases.
* Dedicated GPU warning: Check if your particular power supply model has enough power. Additionally some PSUs don't come with an auxiliary PCIe power connector and you may need to buy a SATA to PCIe power adapter.

Differences between Acer Veriton M6690g and Dell G5 5090

If you are looking for a more modern desktop, then you should go with the Acer Veriton M6690g which was released in 2022. The Dell G5 5090 is older and entered production in 2019.

Both models have the same form factor, meaning reoughtly they have the same phiysical size and form.

Processor

Usually the newer the generation of the CPU, the better the performance and efficiency is. If your budget allows it, you should go with the Acer Veriton M6690g as it is running a newer generation CPU. This is not to say that Dell G5 5090 is bad - it can still run some powerful CPUs, albeit being an older generation.

Memory

Both models have have equal amount of ram slots (4 RAM). Usually two RAM slots are more than enough for most cases. However, the count should be taken into account when planning how much and what combination of RAM you are going to need for your system.

The Acer Veriton M6690g is using the faster 3200 MT/s RAM. The Dell G5 5090 is slower by supporting RAM speeds of up to 2666 MT/s. Additionally, if you will be needing a lot of RAM, better go for the Acer Veriton M6690g as it has the ability to run 128 GB of RAM. The Dell G5 5090 can do a bit less at max 64 GB. Most of the times, this should be sufficient for the majority of users.

Ports

In total the Dell G5 5090 has 9 USB ports. The Acer Veriton M6690g is inferior in this regard and packs 8 USB ports. In any case, if you miss USB ports, you can always purchase a USB hub. Both of the models have USB 3.1 ports which will allow you to exchange data with your peripherals at up to 10Gb/s. This is especially crucial if you are using external drives on a regular basis.

Unfortunately, only the Acer Veriton M6690g has a DisplayPort. The Dell G5 5090 does not have one? Don't worry though, nowadays video adapters are cheap and you can get almost any combination of conversion types.

The Acer Veriton M6690g comes with an HDMI port, while the Dell G5 5090 does not support the interface. Of course missing HDMI port is something that can be easily fixed with a good adapter (e.g. DisplayPort to HDMI).

SATA ports are placed on the system board and it is where you connect your HDD, SSD and Optical Disk Drives. More SATA slots will allow you to have more drives running at the same time. In this regard the Acer Veriton M6690g is better equipped as it comes with 5 SATA slot(s), while the Dell G5 5090 has 3 slot(s).

An M.2 SSD can be several times faster than a SATA one. Thus, we are happy to see that both models support the M.2 interface. However, the Acer Veriton M6690g has 1 M.2 slots while the Dell G5 5090 comes with just 1.

Make sure that the available M.2 slot supports the PCIe (also called NVMe) interface. This is important as there are M.2 slots which support only the inferior SATA III interface. For comparison, the SATA III interface has max speeds of 6Gb/s, while the PCIe 3.0 x4 will support speeds up to 32Gb/s!

Power Supply

Having a Power Supply Unit with high power rating is important, if you are going to use components which require extra power. The Dell G5 5090 comes with a decent 460 Watt PSU, but the Acer Veriton M6690g has a more powerful one rated at 500 Watts. Choosing either one depends on your specific requirements and use case. Also don't forget that some models might have more than one PSU option - try to always get the most powerful one, especially if you plan to upgrade to a powerful GPU.

Motherboard

Acer_Veriton_M6690g_motherboard.jpg motherboard layoutDell_G5_5090_motherboard.jpg motherboard layout
